Supermicro releases new series of 1U 4x GPU SuperServer® and 3U/6U MicroBlade for 3D Graphics, Video, and Visualization Applications
Supermicro’s 1U 4x GPU SuperServer with cooling optimized non-preheat GPU architecture and 3U/6U MicroBlade with Intel Xeon E3-1200 v4 deliver best performance for graphics, video and visualization applications. The enterprise-class server solutions are designed for the most demanding, mission critical application environments and with a wide range of solutions from Ultra servers to MicroBlade, SuperBlade, and SuperWorkstations, professionals in creative and scientific fields can deploy exactly the best accelerated computing solutions with full confidence in performance, scalability and reliability
Optimized for Citrix virtualization:
The only virtualization solution that supports Intel Xeon E3 with Iris Pro product offerings, including this unique and highly flexible form-factor solution now available from Supermicro, Citrix provides enterprise customers with the most cost-effective offering available, providing unmatched support for server density and flexibility

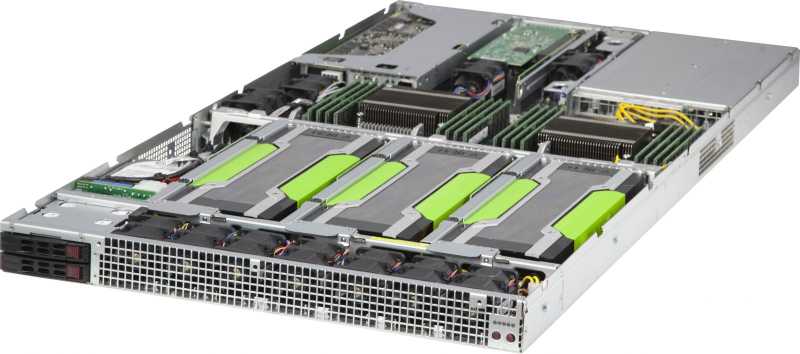

1U 4xGPU Super-server:
The new high-density 1U 4x GPU SuperServer (SYS-1028GQ-TR/-TRT) which maximizes performance and density through pioneering non-preheat GPU architecture and PCIe direct connect (no extension cables, re-drivers, or bridge chips) for lowest latency.

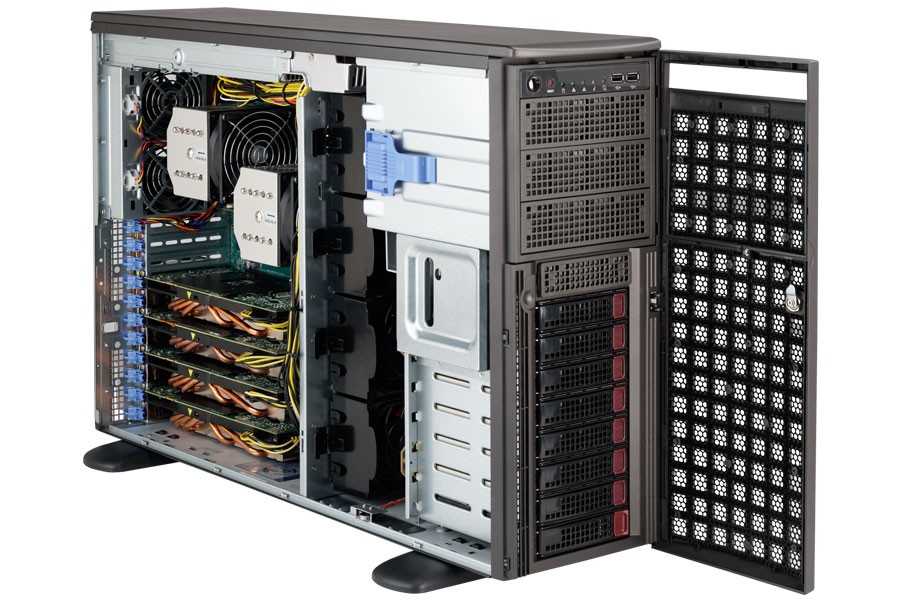

4U/Tower 4x GPU SuperWorkstation
SYS-7048GR-TR featuring 4x next generation NVIDIA® Quadro® GPUs

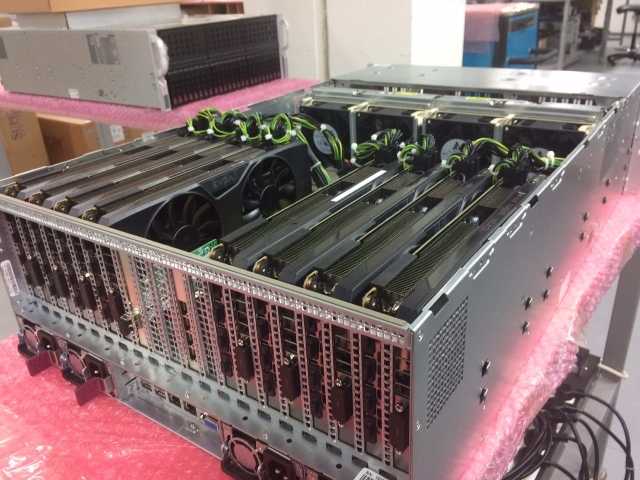

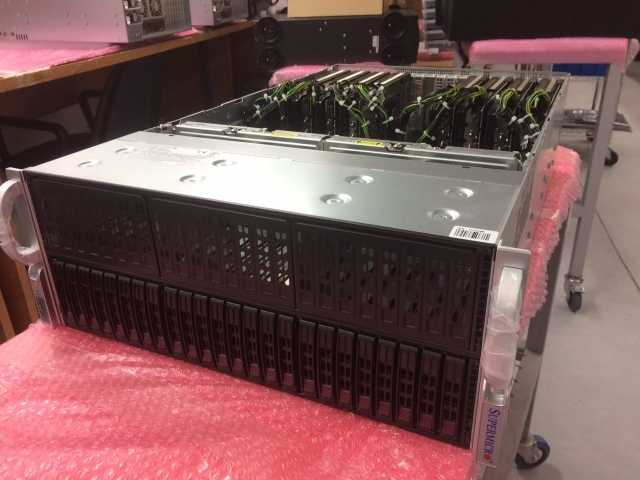

4U 8x GPU Server:
Supports 8 GPU accelerators, dual Intel® Xeon® processor E5-2600 v3 (up to 160W)

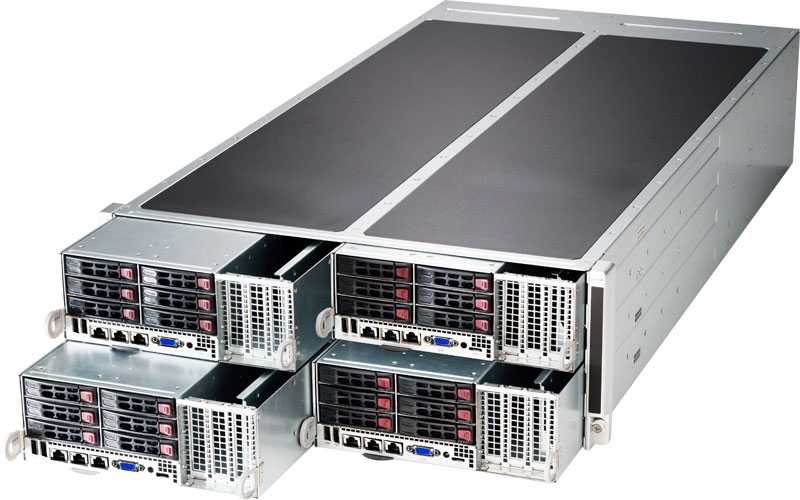

FatTwin GPU Solution:
Support 12x GPU/Xeon

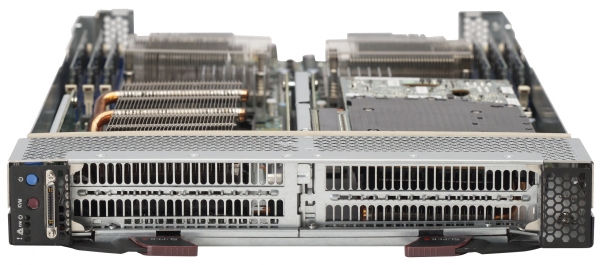

GPU Blade:
Up to 120x GPU per 42U rack
Within The New Solutions:
| Solution: | Form: | Highlight: |
| 1U 4x GPU SuperServer® | 4U | (SYS-1028GQ-TR/-TRT) Whitepaper – Dual Intel® Xeon® processor E5-2600 v3, up to 1TB ECC, up to DDR4 2133MHz; in 16x DIMMs, 4x PCI-E 3.0 x16 slots (4x NVIDIA Tesla®, NVIDIA® GRID™, Intel® Xeon Phi™ coprocessor cards optional), 2x PCI-E 3.0 x8 (in x16) LP slot, dual port GbE LAN (-TR SKU), dual 10GBase-T (-TRT SKU), 2x 2.5″ hot-swap drive bays, 2x 2.5″ internal drive bays, efficient airflow heavy duty counter-rotating fans with air shroud & optimal fan speed control, 2000W Redundant Platinum Level (94%+) Power Supplies |
| 4U 8x GPU SuperServer® | 4U | (SYS-4028GR-TR) – supports 8 GPU accelerators, dual Intel® Xeon® processor E5-2600 v3 (up to 160W), up to 1.5TB ECC DDR4, 2133MHz in 24 DIMM slots, 24 2.5″ hot-swap SAS2/SATA3 drive bays, 8 PCI-E 3.0 x16 slots (double-width), 2 PCI-E 3.0 x8 (in x16) slots, 1 PCI-E 2.0 x4 (in x16) slot, dual 1GbE ports, and redundant 1600W Platinum Level (94%+) digital power supplies. |
| 1U 3x GPU SuperServer® | 3U | (SYS-1028GR-TR/-TRT) World Record STAC-A2™ Benchmark – Dual Intel® Xeon® processor E5-2600 v3, up to 1TB ECC, up to DDR4 2133MHz in 16x DIMMs, 4x PCI-E 3.0 x16 slots (3x NVIDIA Tesla®, NVIDIA® GRID™, Intel® Xeon Phi™ coprocessor cards optional), 1x PCI-E 3.0 x8 LP slot, dual port GbE LAN (-TR SKU), dual 10GBase-T (-TRT SKU), 4x hot-swap 2.5″ SATA3 drive bays, 1600W Redundant Platinum Level (94%+) Power Supplies, 10x Counter rotating fans w/ optimal fan speed control, Smart server management tools |
| 2U Hyper-Speed Ultra SuperServer® | 2U | (SYS- 6028UX-TR4) – Dual Intel® Xeon® processor E5-2600 v3, up to 1TB ECC, up to DDR4 2133MHz in16x DIMMs, 3x PCI-E 3.0 x16 slot (FH, 10.5″ L), 3x PCI-E 3.0 x8 slots (1 in x16 FH 10.5″ L, 1 LP, 1 Internal LP), 4x GbE ports, 12x hot-swap 3.5″ drive bays: SATA3 default, 12x SAS3 opt., 4x NVMe opt. via AOC, 4x heavy duty fans w/ optimal fan speed control, 1000W Redundant Titanium Level (96%) high-efficiency power supplies |
| 3U/6U MicroBlade – (MBI-6128R-T2/-T2X) | 3U/6U | (MBI-6128R-T2/-T2X) performance oriented solution with highest density up to 196 Intel® Xeon® DP nodes (5488) cores) per 42U rack with 95% cable reduction – supports dual Intel® Xeon® Processor E5-2600 v3 (up to 14 cores) up to 28x DP servers with 1GbE and 10GbE options. (MBI-6118D-T2H/-T4H) supports Intel® Xeon® processor E3-1200 v4, features include power efficiency with 14nm technology, improved performance, coherency and balance of CPU and GPU Graphics via package interconnect shared L3 Cache and 128MB Graphic embedded cache. A simpler CPU subset and Intel® Iris™ Pro graphics P6300 in an interconnect package enable key technologies for the best server performance per watt per flop with great graphics emphasis. |
| 7U SuperBlade | 7U | advantages include maximum density, affordability, reduced management costs, lower power consumption, optimal ROI, and high scalability. Modules support latest Intel® Xeon® Processor E5-2600 v3 and are available in 20/30 GPU/Xeon Phi Blade; 2x NVIDIA® Tesla®, NVIDIA® GRID™ or Intel® Xeon Phi™ coprocessor cards per blade server (SBI-7128RG-X/-F/-F2), 3x NVIDIA Tesla® GPU per blade server (SBI-7127RG3), Data Center Blade (SBI-7428R-C3N, SBI-7428R-T3N), TwinBlade® (SBI-7228R-T2F/-T2F2/-T2X), Storage Blade with NVMe support (SBI-7128R-C6N), PCI-E Blade (SBI-7127R-SH, SBI-7427R-SH/-S2L, SBI-7126T-SH, SBI-7426T-SH) and 4-Way Blade (Intel® Xeon® Processor E5-2600 v2 SBI-7147R-S4X/-S4F) solutions. Chassis feature industry’s only hot-swap NVMe solutions, hot-plug switch modules supporting Infiniband FDR/QDR, FC/FCoE, Layer 2/3 1/10 GbE, chassis management module (CMM) and redundant 3000W/2500W/1620W (3+1), hot-swap Platinum Level digital power supplies |
